An animated, shape-agnostic border light for Flutter. It supports arbitrary Path masks, inner-only multi-layer glow, smooth enable/disable transitions, asymmetric light tails, and pulse.

No fragment shader or platform-specific code is used.

▶ Watch the animated demo

Arbitrary shapes	Compact controls

Features

• Works with any CustomClipper<Path> or Flutter ShapeBorder.
• Keeps the glow inside the widget bounds.
• Supports layered glow, animated color, pulse, and smooth transitions.
• Follows live size changes and morphing masks.
• Uses Flutter canvas APIs only—no fragment shaders or platform code.

Installation

dependencies:
  border_beam_effect: ^1.0.0

Then import the package:

import 'package:border_beam_effect/border_beam_effect.dart';

Basic usage

Use the same shape for the widget decoration and the effect mask:

final shape = RoundedSuperellipseBorder(
  borderRadius: BorderRadius.circular(30),
);

BorderBeamEffect(
  mask: ShapeBorderClipper(shape: shape),
  enableEffect: true,
  borderColor: Colors.white,
  beamColors: const [
    Colors.cyanAccent,
    Colors.purpleAccent,
    Colors.limeAccent,
  ],
  child: Container(
    decoration: ShapeDecoration(color: Colors.black, shape: shape),
    child: const SizedBox(width: 320, height: 120),
  ),
)

Fully configured example

BorderBeamEffect(
  mask: ShapeBorderClipper(shape: shape),
  enableEffect: enabled,

  // Sharp animated light.
  borderColor: Colors.white,
  borderWidth: 1,

  // Colored glow.
  beamColors: const [Colors.cyan, Colors.pink, Colors.lime],
  beamColorStops: const [0, .45, 1],
  beamWidth: 1,
  gradientMode: BorderBeamGradientMode.rotating,
  glowLayers: const [
    BorderBeamGlow(
      blurRadius: 3,
      spread: 1,
      opacity: .9,
      blendMode: BlendMode.plus,
      maxBlurFraction: .05,
    ),
    BorderBeamGlow(
      blurRadius: 12,
      spread: 5,
      opacity: .45,
      blendMode: BlendMode.plus,
      maxBlurFraction: .12,
    ),
  ],

  // Short head and long tail.
  beamExtent: .4,
  seamlessFullExtent: true,
  beamMaskStops: const [0, .08, .3, 1],
  beamMaskOpacities: const [0, 1, .65, 0],
  beamRiseCurve: Curves.easeInOutCubic,
  beamFallCurve: Curves.easeInOutCubic,
  maskSamples: 40,

  // Motion.
  clockwise: true,
  startPosition: 0,
  duration: const Duration(milliseconds: 2500),

  // Transitions and subtle glow breathing.
  fadeDuration: const Duration(milliseconds: 300),
  pulseMinOpacity: .88,
  pulseMaxOpacity: 1,
  pulseDuration: const Duration(milliseconds: 1600),
  pulseCurve: Curves.easeInOutSine,

  child: child,
)

Glow layers

glowLayers accepts any number of BorderBeamGlow objects. Use an empty list to keep only the sharp animated border. When it is omitted, two adaptive layers are generated from beamBlurRadius for backwards compatibility.

Each layer controls:

• blurRadius — requested blur sigma;
• spread — glow-source width without changing the sharp line;
• opacity — layer intensity;
• blendMode — BlendMode.plus works well on dark surfaces;
• maxBlurFraction — optional cap relative to the shortest widget side.

The entire effect is clipped by mask, so glow is always painted inward.

Intensity tuning

Brightness is controlled without a hidden global multiplier:

• use beamMaskOpacities to shape the bright core and its tail;
• use each BorderBeamGlow.opacity for glow intensity;
• use pulseMinOpacity and pulseMaxOpacity for breathing depth;
• use BlendMode.plus for additive light on dark surfaces.

Custom paths

Any CustomClipper<Path> can be used as the mask:

BorderBeamEffect(
  mask: const StarClipper(),
  // ...
  child: child,
)

The same mask clips the child and defines the animated border.

Example gallery

The project in example/ contains five interactive demos:

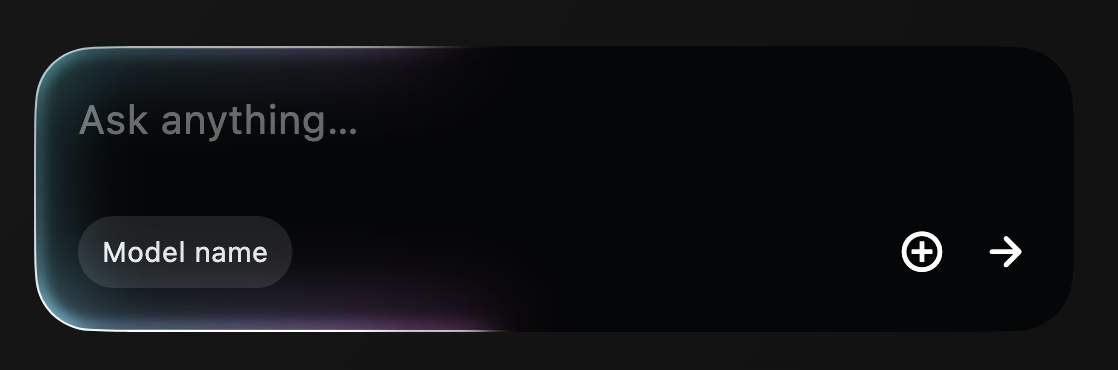

• an AI prompt card using RoundedSuperellipseBorder;

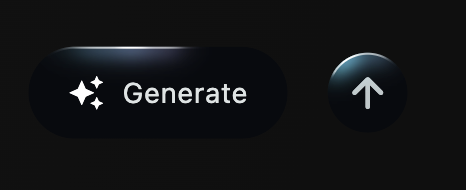

• compact pill and circular action buttons;

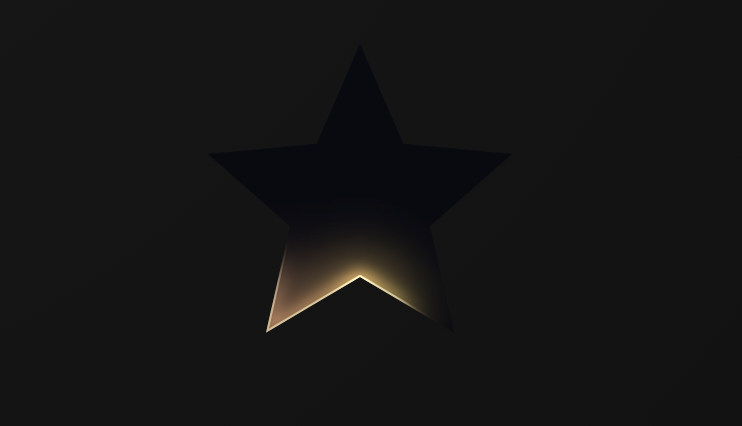

• a custom star showing that the mask can have any shape;
• a continuously morphing squircle-to-circle mask;
• a compact action that animates between expanded and collapsed sizes.

Every demo includes live controls for glow blur radius (1–200) and beam length, so the same effect can be tuned against different sizes and shapes.

Run it with:

cd example
flutter run

The original focused playground is also preserved:

cd example
flutter run -t lib/playground.dart
