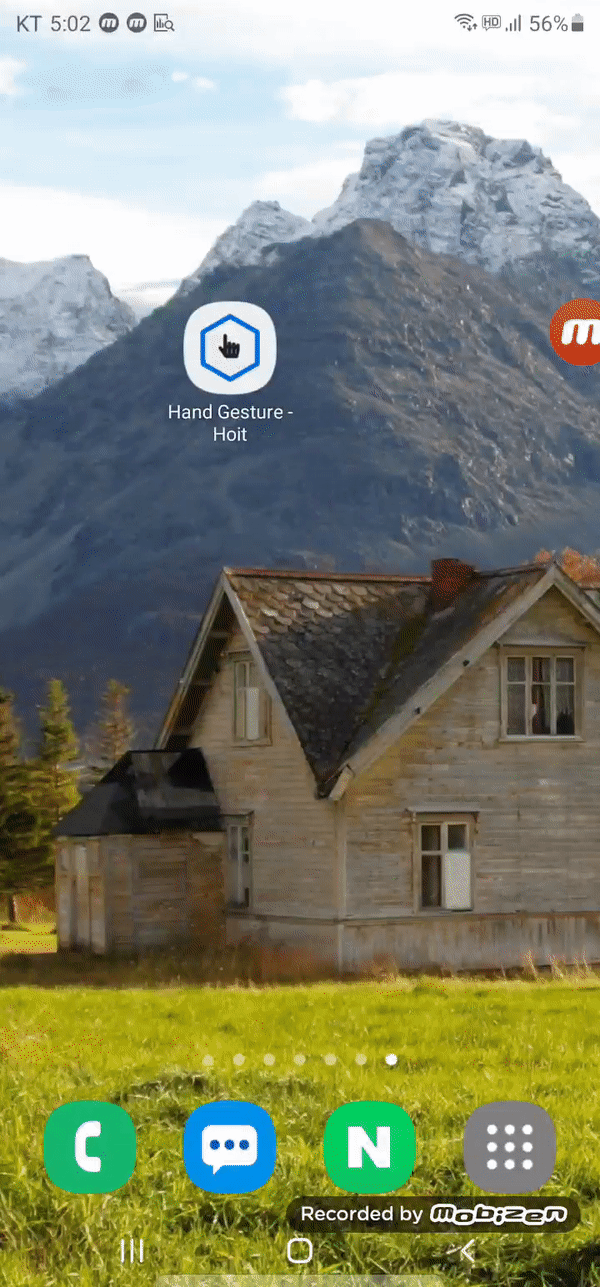

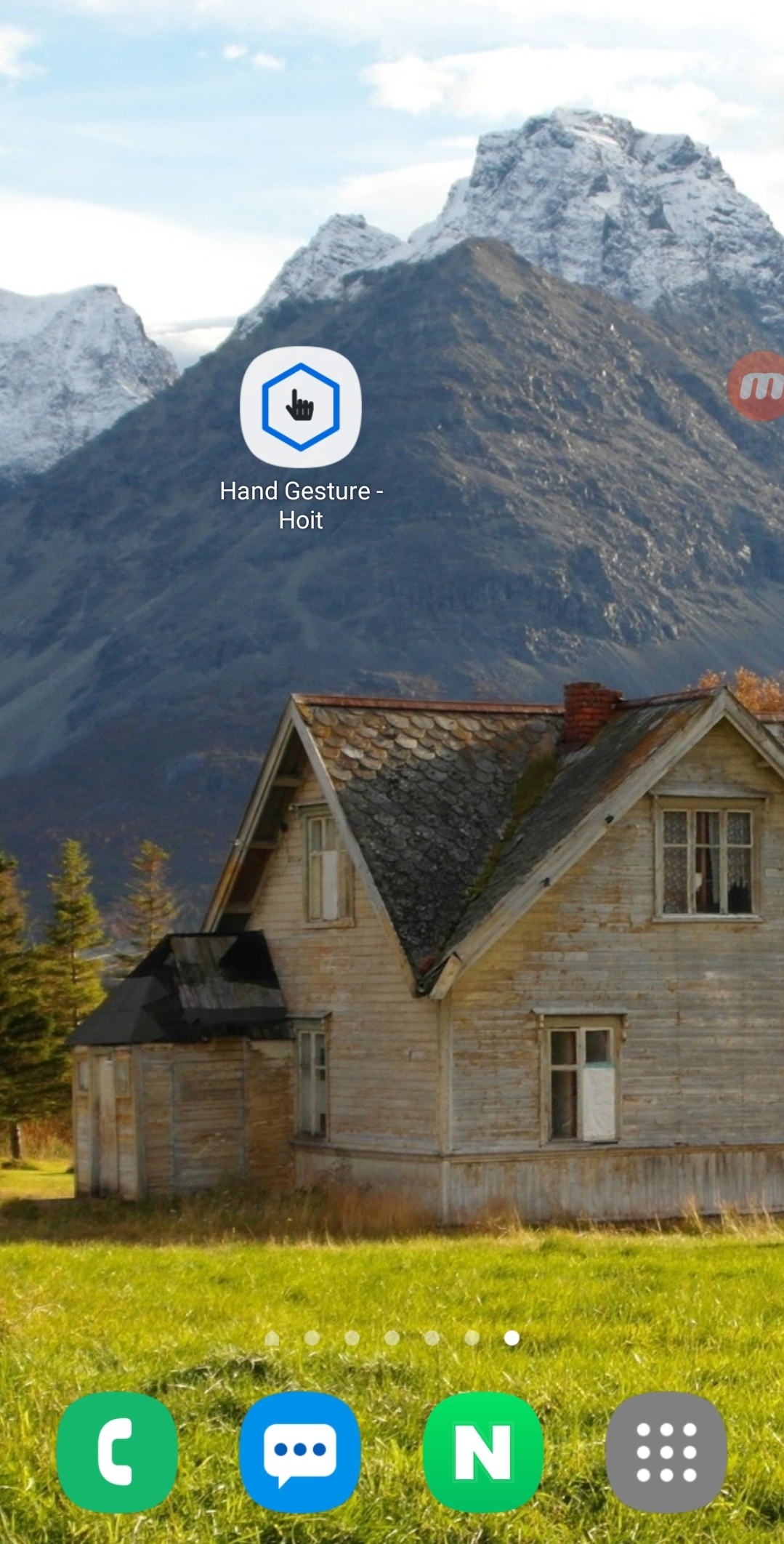

diff --git "a/2020/team3/hand_gesture_app_hoit/Tutorial/00. \352\263\274\354\240\234 \352\270\260\355\232\215\354\204\234.md" "b/2020/team3/hand_gesture_app_hoit/Tutorial/00. \352\263\274\354\240\234 \352\270\260\355\232\215\354\204\234.md" index 475c078..014c938 100644 --- "a/2020/team3/hand_gesture_app_hoit/Tutorial/00. \352\263\274\354\240\234 \352\270\260\355\232\215\354\204\234.md" +++ "b/2020/team3/hand_gesture_app_hoit/Tutorial/00. \352\263\274\354\240\234 \352\270\260\355\232\215\354\204\234.md" @@ -67,3 +67,54 @@ NNStreamer | nntstreamer와 nntrainer는 Convention부터 모듈 구조, 각종 프로젝트 구현 확인 | 프로젝트 내에서 핵심 기능이 제대로 구현되는지 확인한다. 제스처 인식 확인 | 제스처 인식 라이브러리를 사용해 손을 인식하고 분석한다. * * * + +# 4. 개발 결과 +## 4-0 Application Icon + + +## 4-1 Model Download +Install Models if you don't have models that App requires.

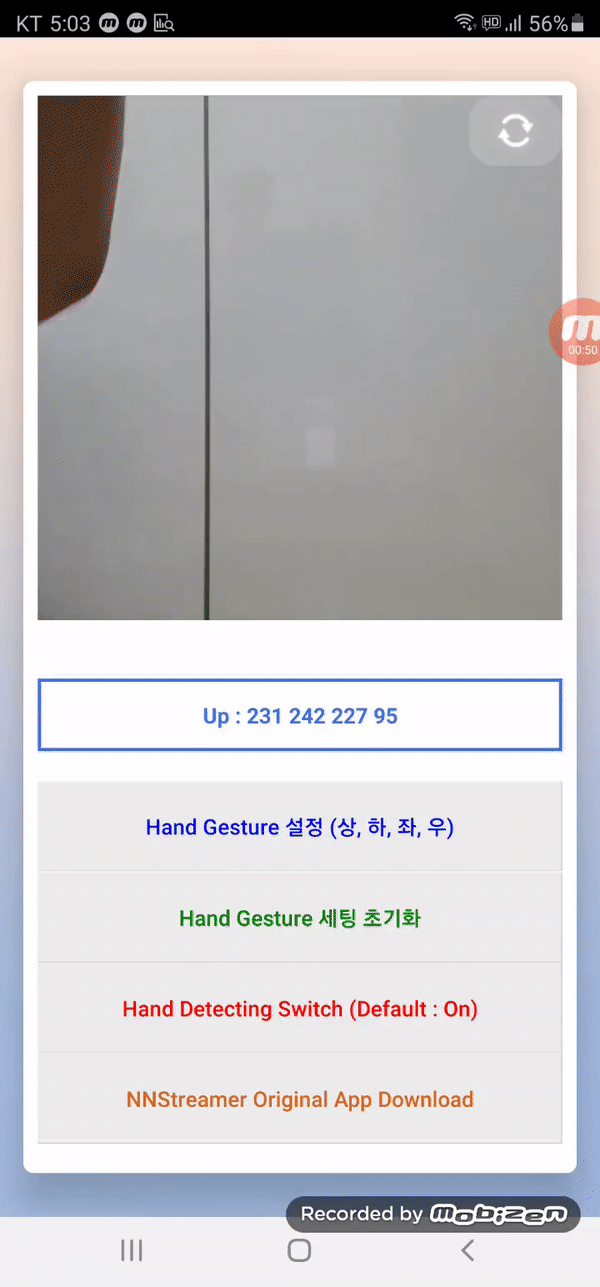

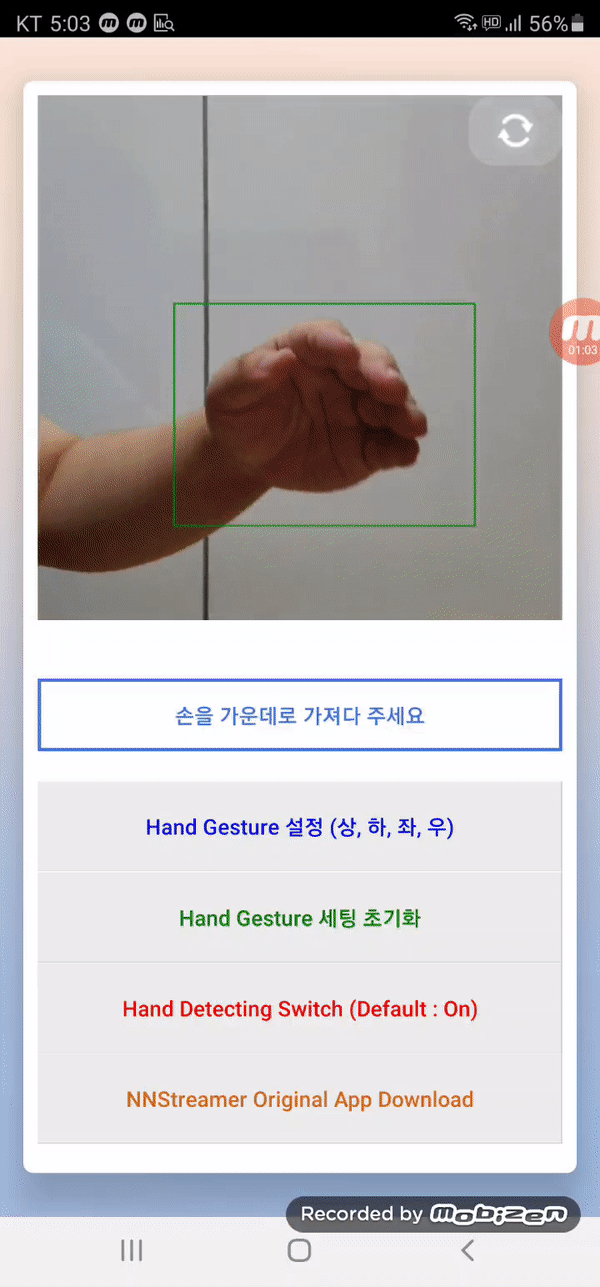

+ + +## 4-2 Detect Hand +Label : Up, Down, Left, Right (based on x & y location)

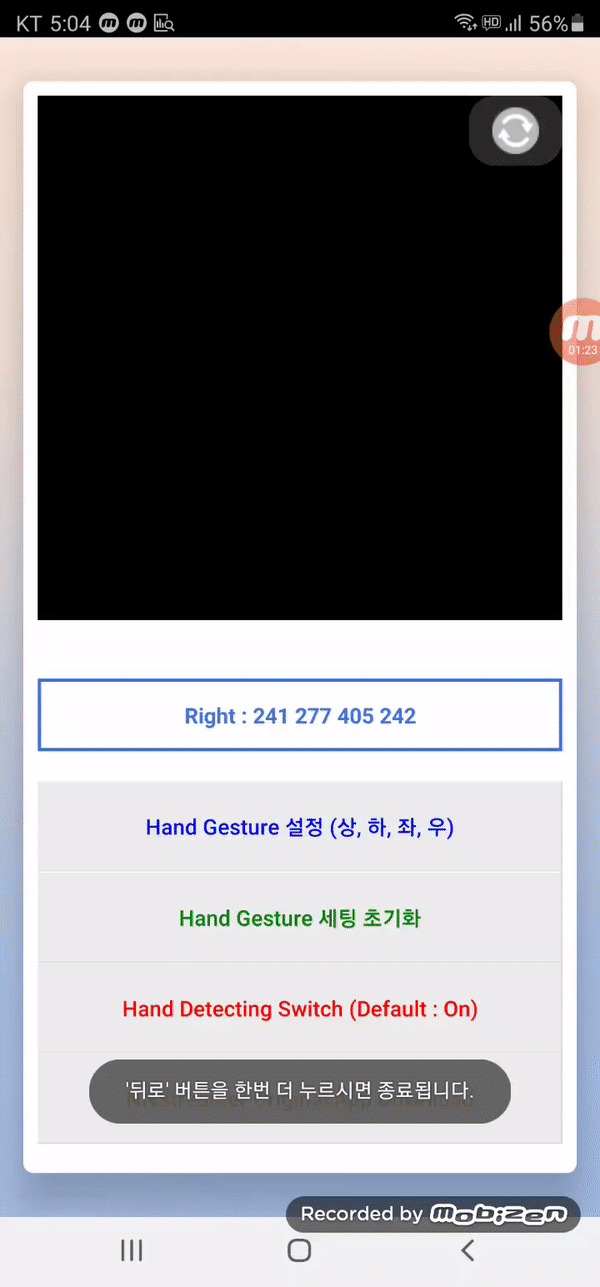

+we can see x y location's changes.

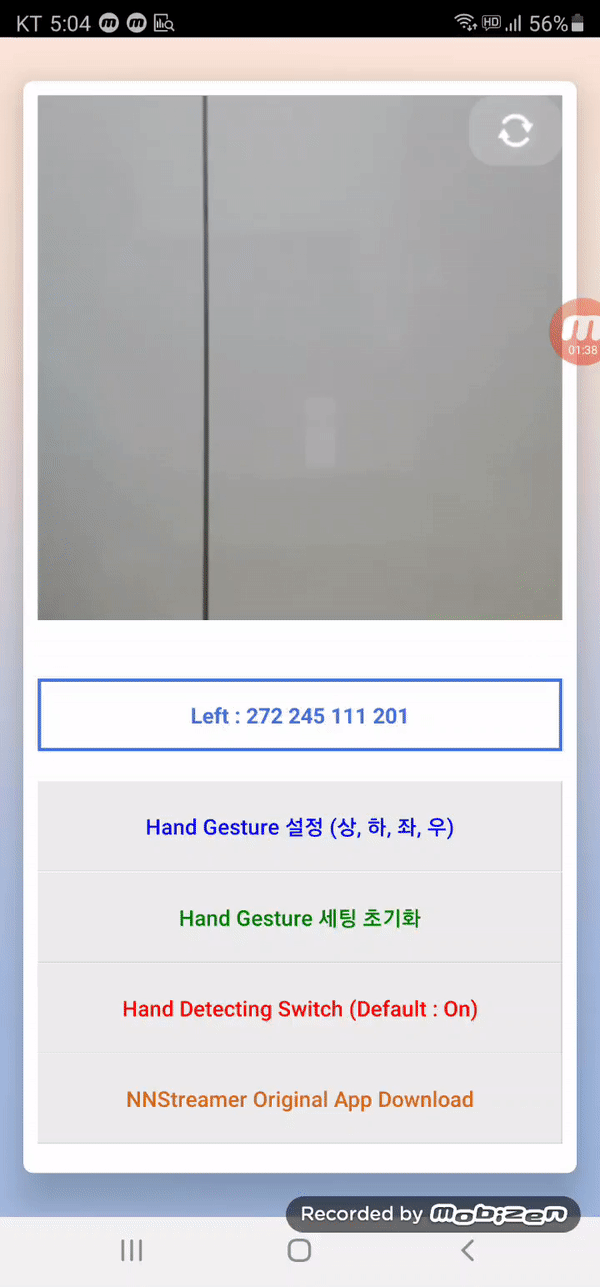

+ + +## 4-3 Mapping Android App actions with hand gestures +ex) Up - Camera App execute / Down - Play Store App execute

+ + +## 4-4 Mapping actions +Execute mapping App.

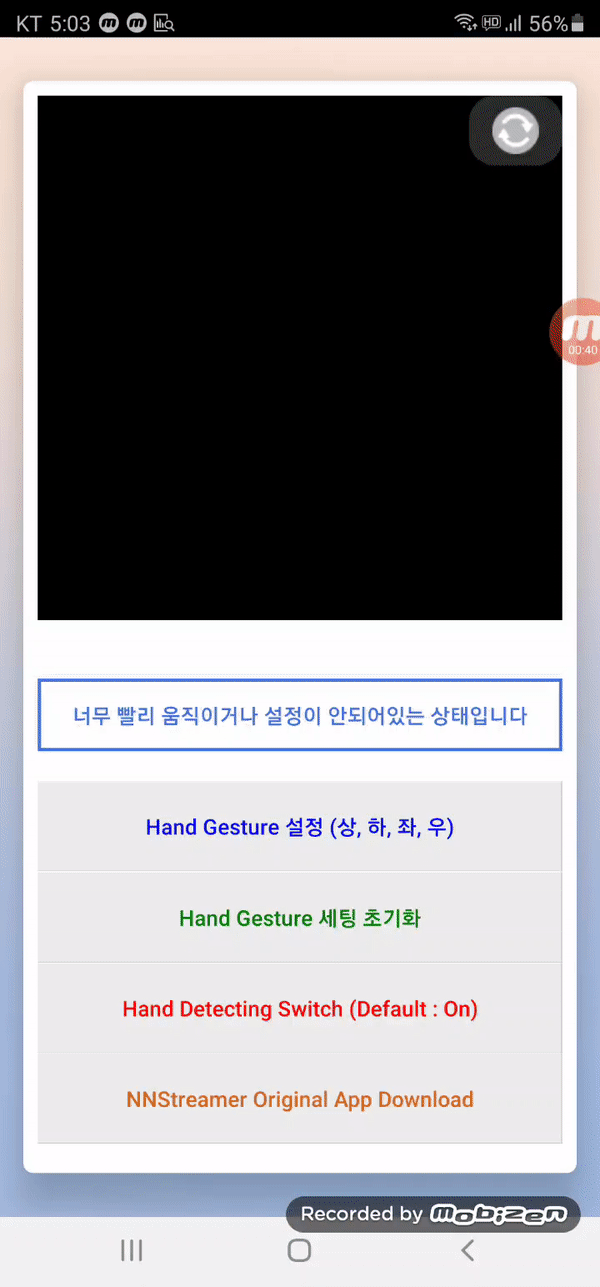

+ + +## 4-5 Mapping Reset +Reset mapping App's actions by click reset button.

+ + +## * Maintain Mapping Actions +Maintain mapping actions if you exit App.

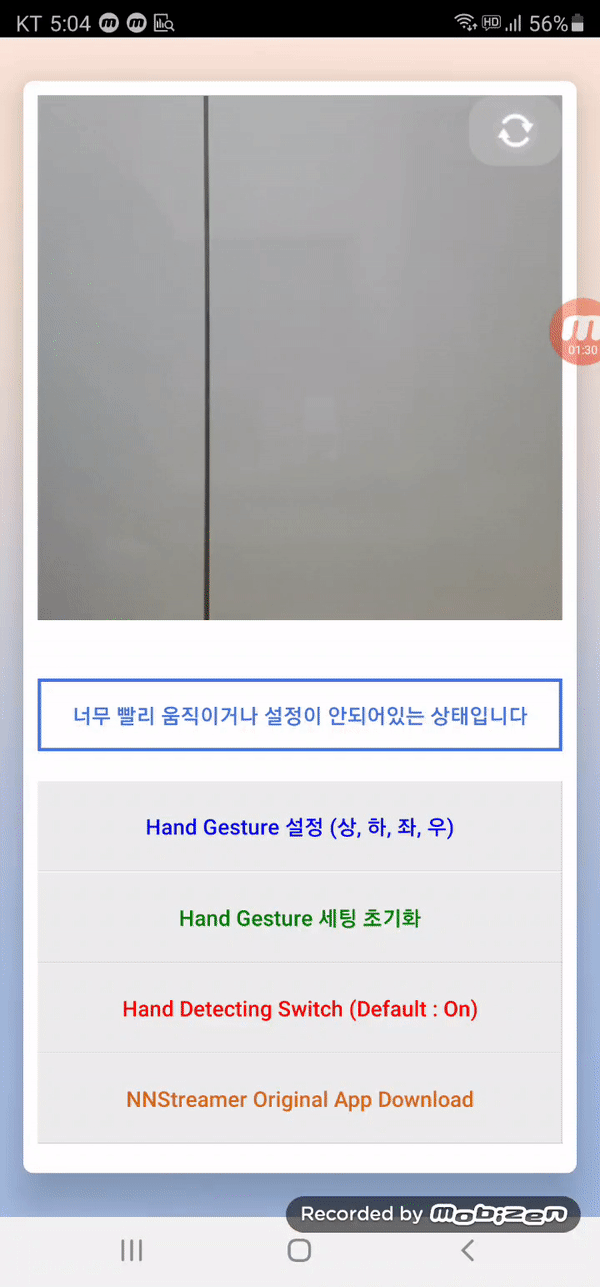

+ + +## 4-6 Hand Detection ON/OFF Toggle +Toggle by toggle button. ( ON : detect hand / OFF : do not detect hand )

+
+ +

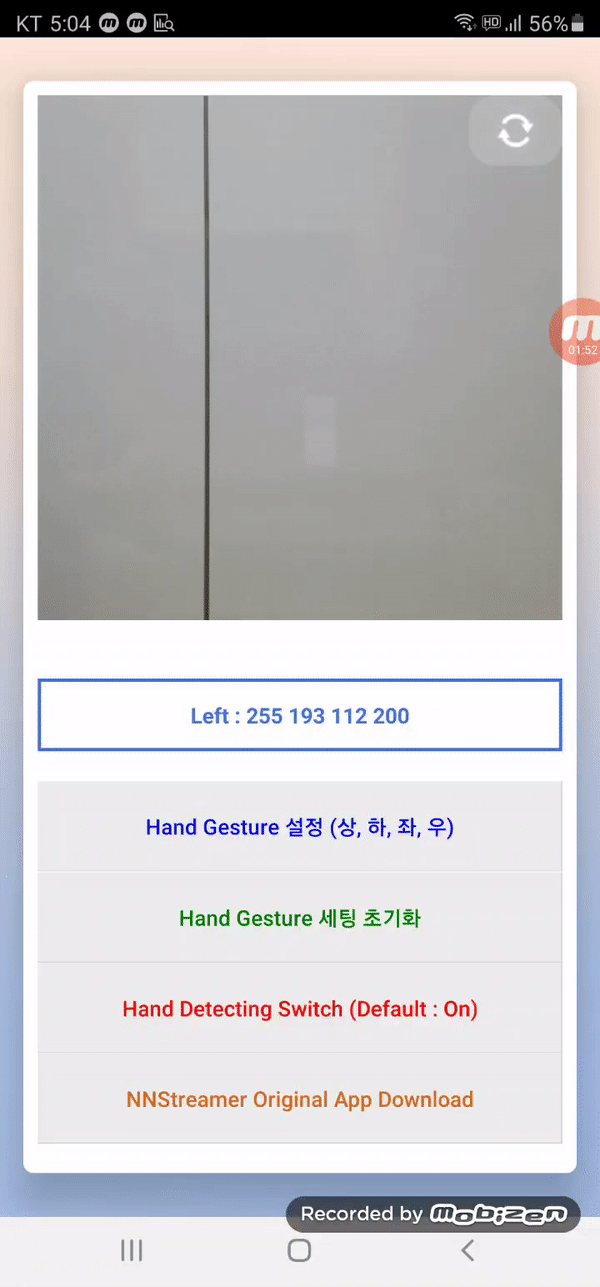

+ +## 4-7 Go to Google PlayStore's NNStreamer-multi page +we add a link button that is connected with reference App Play Store page. ( nnstreamer-multi )

+ + + +* * * + +# 5. Installation +#### Setup NNStreamer example +First, setup nnstreamer example. Please see details [here](https://github.com/davichiar/nnstreamer-example/tree/master/android/example_app). ( some setup course have to be changed. see [here](https://github.com/davichiar/nnstreamer-example/blob/master/android/example_app/not-normal-streamer/02.%20NNStreamer%20%ED%8A%9C%ED%86%A0%EB%A6%AC%EC%96%BC.md)) + +#### Replace nnstreamer-multi +We only use nnstreamer-multi. Replace nnstreamer-multi file with this repository's one. + +
